Autex Lattice

Autex Lattice – Suspended Acoustic Baffles

Autex Lattice is Autex’s signature acoustic baffle, available in three distinct shapes and designs.

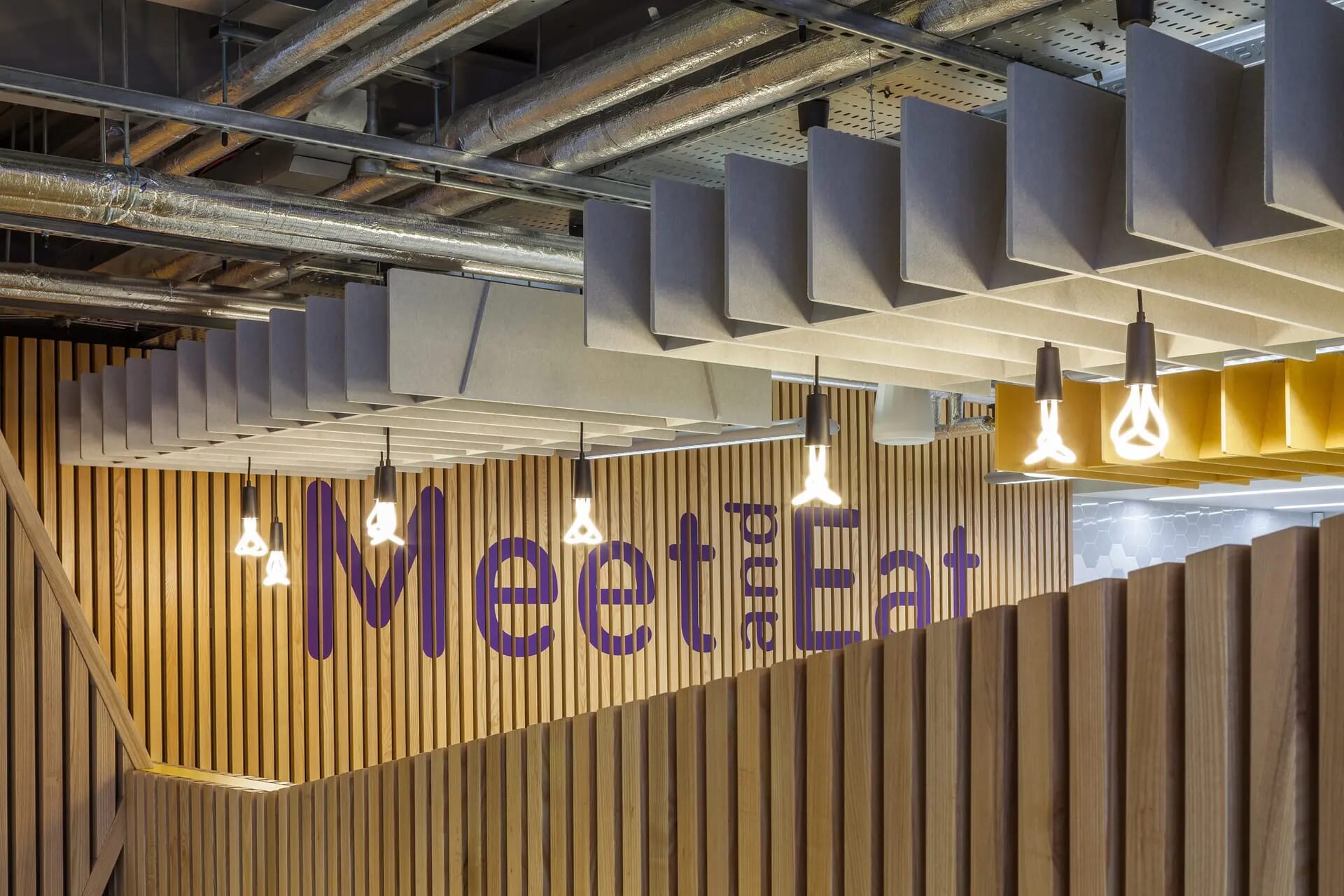

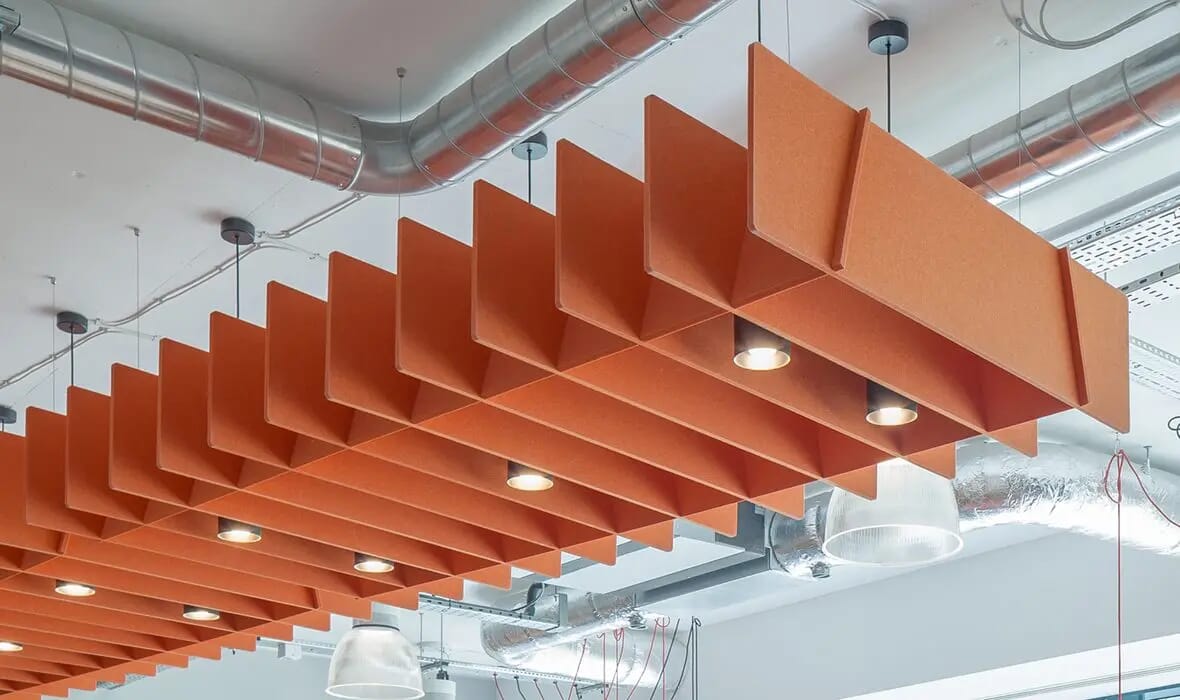

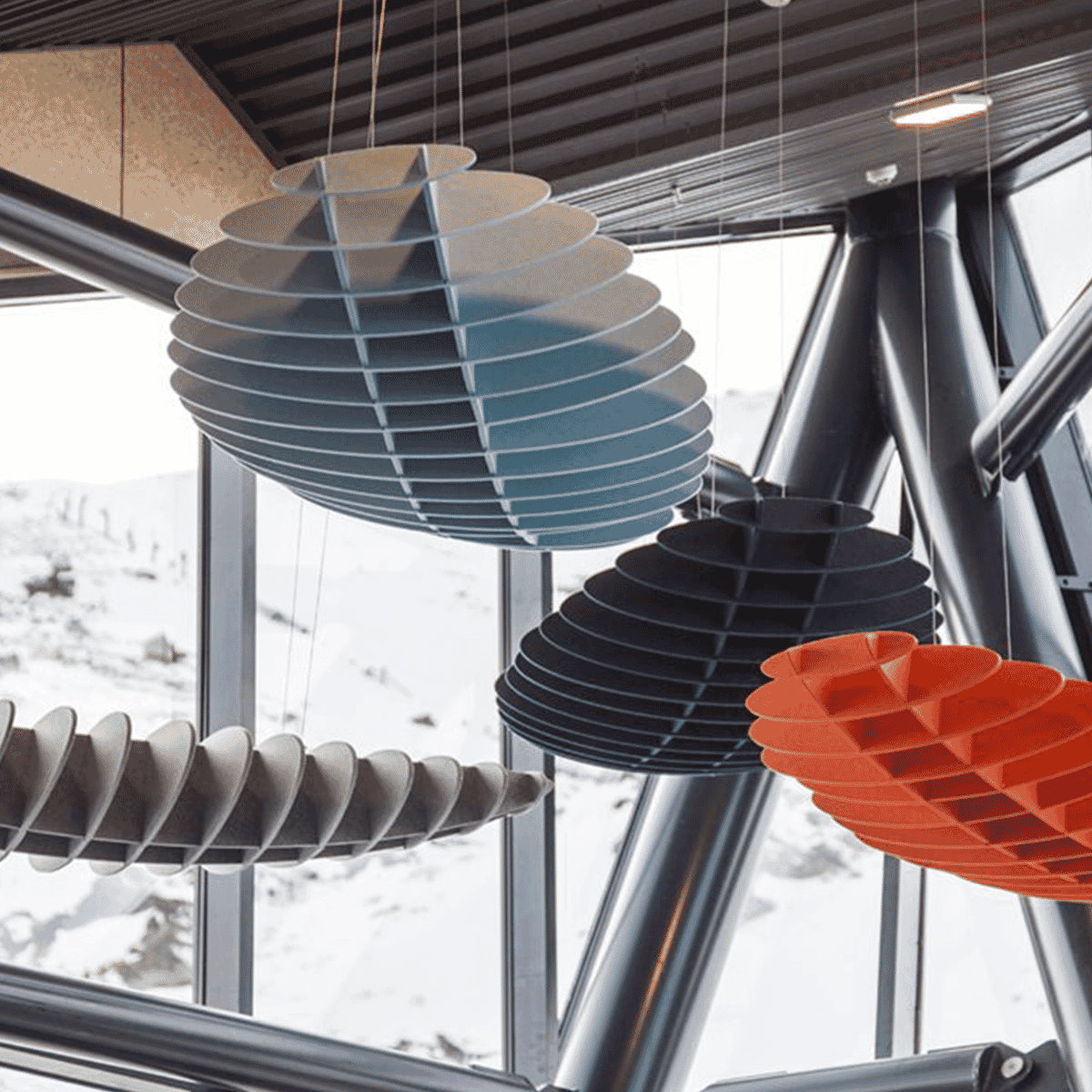

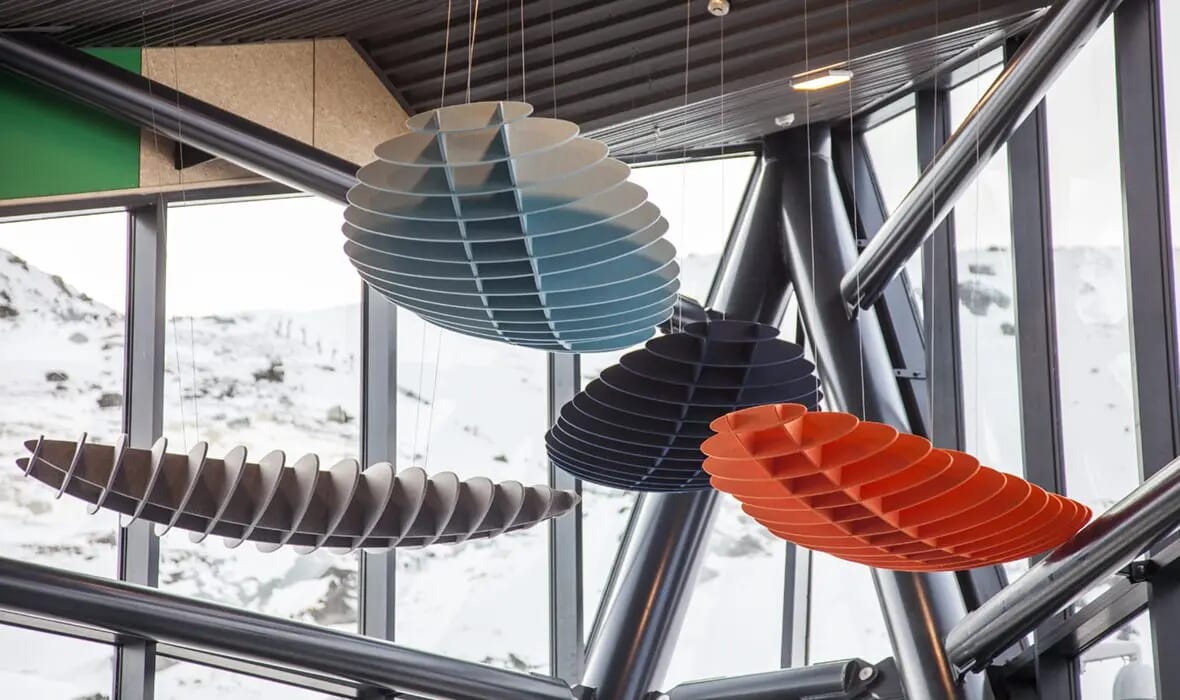

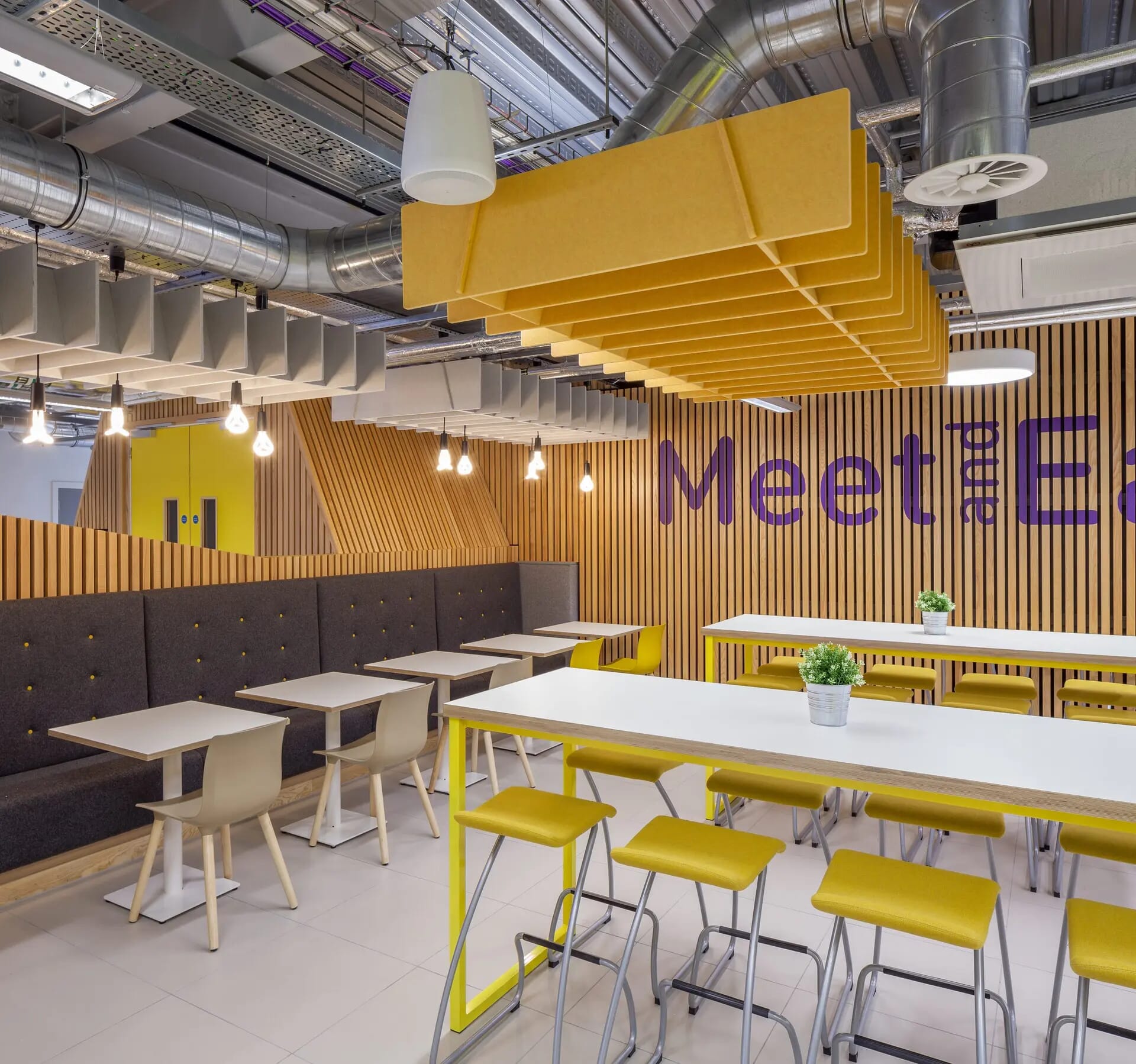

Quietspace Lattice is crafted from PET panels and comes in three shapes: Trapezium, Torus, and Eclipse. Trapezium offers a traditional rectangular baffle design, while Torus and Eclipse provide unique shapes that make striking ceiling features.

Each panel delivers a high level acoustic absorption, some diffusion, and is both lightweight and durable. Made from 100% polyester, the panels are moisture-resistant and unaffected by mould or mildew.

Technical Summary

  • Sizing Option: Varies by design, refer to data sheet
  • NRC: 0.75 – 0.95
  • Composition: 100% Polyester Fibre (PET)
  • Fire Rating: 12mm BS EN 13501-1:2018 B-s2, d0 | 24mm BS EN 13501-1:2018 B-s2, d2
  • Application: Ceiling
  • Environmental: Carbon neutral product and zero carbon manufacturing. At least 60% of the product is made from recycled material.
  • Cleanability: Light vacuuming on a regular basis will prevent dust build up, and most marks can be cleaned with a mild detergent solution followed by rinsing and blotting. NB: Product needs to be removed from the ceiling to clean safely.

Autex Lattice – A Sustainable Choice

Made with a minimum of 65% recycled polyester fibre (from PET bottles), Lattice is an eco-friendly choice. Off-cuts and manufacturing waste can be reused in production, further enhancing its sustainability. Non-toxic and non-allergenic, Lattice is safe for almost any environment and does not contain harmful red-list chemicals as defined by the EPA.
